VacuuBrand-普兰德/变频化学真空系统 PC 3001 VARIO pro

代理销售VacuuBrand-普兰德全系列实验室仪器设备；详情电话咨询；

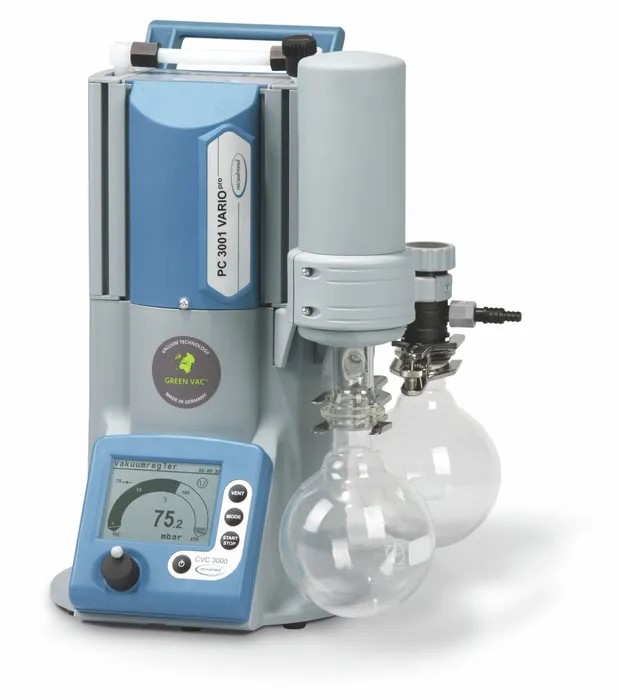

PC 3001 VARIOpro
VARIO® chemistry pumping unit
easily operated CVC 3000 vacuum controller with clear text menus and integrated venting valve
automatic optimization of the vacuum level throughout the process for high process reproducibility and unattended operation, short process times due to zero-fluctuation (hysteresis-free) vacuum control - even for large amounts of vapor
compact and powerful; excellent ultimate vacuum, even with continuous condensate purge
whisper quiet and ultra low vibration
excellent environmental friendliness due to low power consumption and efficient solvent recovery
Ultimate vacuum

2 mbar

Ultimate vacuum with gas ballast

4 mbar

Max. pumping speed 50 Hz

2 m3/h

VARIO® chemistry pumping unit in action
This VARIO® chemistry pumping unit optimizes vacuum conditions automatically by precisely and continuously adjusting the diaphragm pump´s motor speed. Thanks to the motor speed control the pump operates only when vacuum is needed, saving energy and reducing maintenance. The integrated vacuum controller enables fully automatic evaporation at a push of a button. Low space requirements, light weight and low operational noise contribute further to this unit’s flexibility and popularity for laboratory use. The PC 3001 VARIOpro is ideal for vacuum applications with high boiling point solvents. The inlet separator, made of glass with a protective coating, prevents droplets and particles from entering the pump. The highly efficient insulated exhaust vapor condenser has a very compact design and provides near-100-percent recovery of solvents. This pumping unit is ideal for vacuum applications with high boiling solvents. The hysteresis-free vacuum control prevents superheating and foaming to protect valuable process samples. The controller enables automatic detection of vapor pressure and automatic adjustment of the vacuum level to the process requirements. The ´pro´ version with improved pumping speed extends the range of use. Evacuation of larger vessels and process steps with high vapor volumes can be completed more quickly. Programmed vacuum processes can be controlled by the integrated CVC 3000 controller or using the RS232C interface to your computer. The ´TE´ version of the PC 3001 VARIOpro uses a dry ice condenser to provide a cooling-water-free option for vapor capture if no cooling water connection is available or water conservation is critical. The PC 3001 VARIOpro with the Peltronic emission condenser works without any cooling media. For exceptionally large amounts of vapor - like from parallel evaporators without condenser - the PC 3001 VARIOpro +IK with its condenser on the vacuum side is an excellent choice.
